Confederate

Brooke



DIAMETER:  3.63 inches
GUN: 20-pounder Parrott rifle, 3.67 caliber
LENGTH:  10 3/16 inches
WEIGHT:  16 pound 7 ounces
CONSTRUCTION:  Shell
SABOT:  Copper ratchet plate
FUZING:  Brooke copper fuze plug, paper time fuze

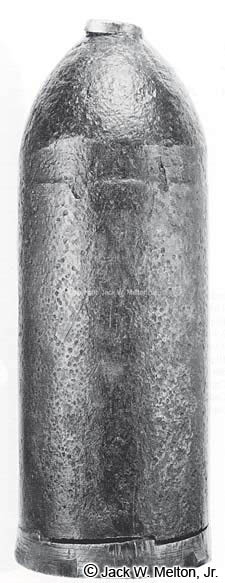

 20-pounder Brooke Shell
This 20-pounder Brooke projectile variety is seldom seen.  It has the letter "D" stamped into the copper sabot.  Brooke projectiles are turned on a lather to the bore dimensions required.  Note that the lathe marks are clearly visible on the sabot.  There are five ratchets on the sabot, unlike the 10-pounder series. Also the letter "G" is found stamped on the sabot.  A good number of these projectiles have been recovered from the Atlanta Campaign.
