Federal

Hotchkiss



DIAMETER:  2.54 inches
GUN:  6-pounder Wiard rifle, 2.6-inch caliber
LENGTH:  6 inches
WEIGHT:  6 pounds 3 ounces
CONSTRUCTION:  Solid shot
SABOT:  Lead band
FUZING:  None

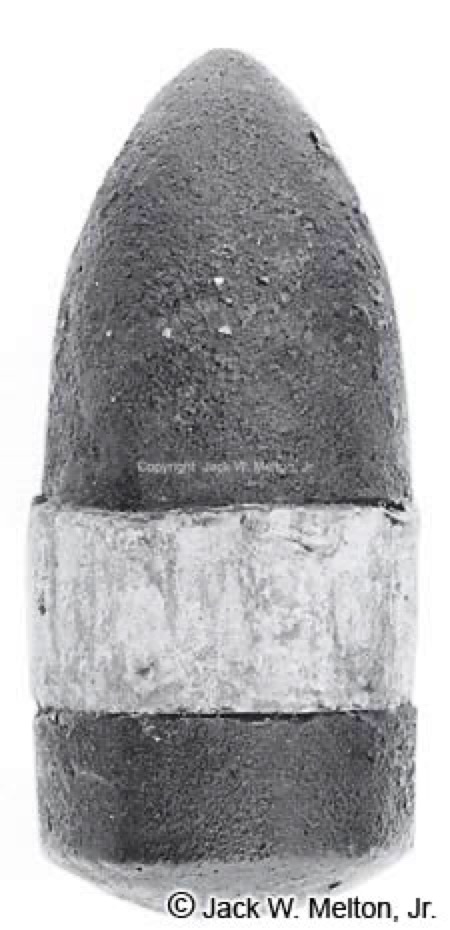

2.6-inch Hotchkiss Bolt
This was the smallest caliber Hotchkiss pattern manufactured, and it is the rarest variety of the Civil War manufactured 2.6-inch Wiard rifle Hotchkiss projectiles.  Hotchkiss projectiles were manufactured in three pieces: a nose, a lead band, and a base cup. Click here for a disassembled view of a similar projectile.
