3-inch Hotchkiss Shell Wood Fuze Adapter

Federal

Hotchkiss

DIAMETER: 2.94 inches
GUN: 3-inch wrought iron (ordnance) rifle
LENGTH: 6 11/16 inches
WEIGHT: 8 pounds 10 ounces
CONSTRUCTION: Shell
SABOT: Lead band
FUZING: Wooden fuze plug, paper time fuze

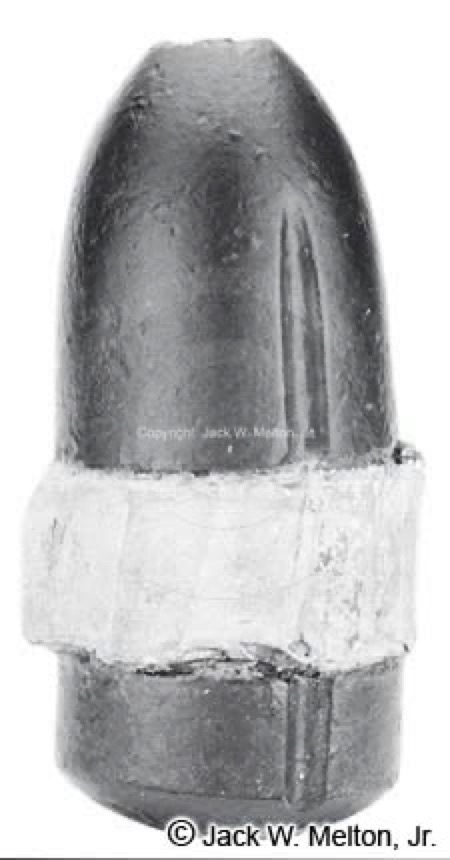

3-inch Hotchkiss Shell Wood Fuze Adapter

This is an early Hotchkiss projectile with three flame grooves that are smaller than those usually found. A wooden fuze plug was also uncommon for this projectile in 3-inch caliber. The Hotchkiss patent date was cast into the bottom of the base cup. This Hotchkiss variety with the wooden time fuze adapter is found mostly on Virginia battlefields.
