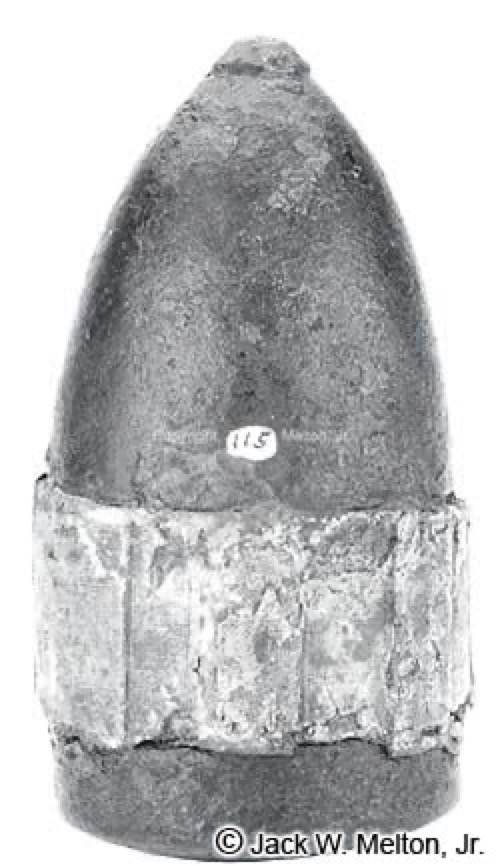

Federal

Hotchkiss



DIAMETER:  3.58 inches
GUN:  Rifled 6-pounder, 3.67-inch caliber
LENGTH:  7 inches
WEIGHT:  12 pounds
CONSTRUCTION:  Shell
SABOT:  Lead band
FUZING:  Percussion, iron anvil cap

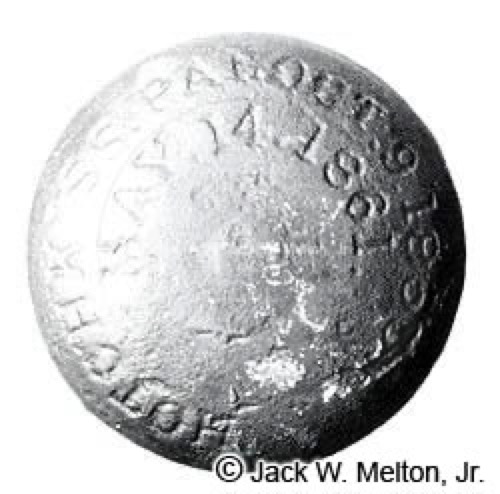

The lead sabot still has the impression of the linen fabric that was used to keep the lead from fouling the bore of the rifled cannon.  This example has a dimple and the patent date on the base cup.  This projectile was intended to be fired from a rifled 6-pounder smoothbore cannon of 3.67-inch caliber.
